V-Tex – Standalone

Introducing V-Tex – Standalone

The Revolutionary Rapid Cooling Technology

Are you tired of having to search through the fridge for the coldest drink?

Look no further than V-Tex. Our innovative technology allows for beverages to be stored at room temperature and then rapidly chilled at the point of sale or consumption.

Not only is V-Tex a convenient solution to your chilling needs, but it is also a green one. By saving 50-90% of energy compared to existing equipment, V-Tex is an eco-friendly choice for businesses and consumers alike.

No more waiting for hours for your drinks to chill in the fridge or freezer. With V-Tex, you can enjoy perfectly chilled drinks in just minutes. Experience the future of drink cooling technology with V-Tex.

Category:

Description

Cooling

Bottle Type
Can
Can
Plastic bottle
Plastic Bottle
Glass bottle
Glass Bottle
Wine
Wine
Volume (l) 0.25 0.33 0.50 1.00 0.33 0.50 1.00 0.25 0.33 0.50 0.75 0.50 0.75 1.00
Nominal end temp Time (Minutes) Time (Minutes) Time (Minutes) Time (Minutes)
Cold
Cold
Cold
02:10 02:10 02:20 02:40 04:30 04:50 06:10 05:50 06:30 07:20 07:50 05:10 05:40 06:30
Cool
Cool
01:40 01:40 01:50 02:10 03:10 03:30 04:20 04:00 04:30 05:00 05:30 03:50 04:10 04:50
Chilled
01:10 01:10 01:20 01:40 02:20 02:30 03:10 03:00 03:20 03:40 04:00 02:40 03:00 03:30

Specification

Cabinet
Model ID V-Tex SA I Black V-Tex SA G Black V-Tex SA F Black
Stations 2 x manual, toughened safety glass lift doors
Material Powdercoat galvanised interior with Stainless and Glassed work area.
Dimensions 640 X 580 X 905 mm
Performance
Max. ambient temp. 43°C
Temperature Range 0°C to 5°C
Drink temperature Range 5°C to 9°C
GEMS class Not Applicable ~ M2
Energy Consumption 0.6 kWh/24h @ 25°C/60% ambient conditions 0.55 kWh/24h without light
Annual Energy Usage 217kWh (light on) 201kWh (light off)
Electrical
Electrical safety climate class T
Power cord Supplied with 1.2m, 10 Amp plug and lead
Power supply 220-240 Volts a.c. 50 Hz, single phase supply
Rated Power 450 w
Current draw 3.5 Amps
Refrigeration

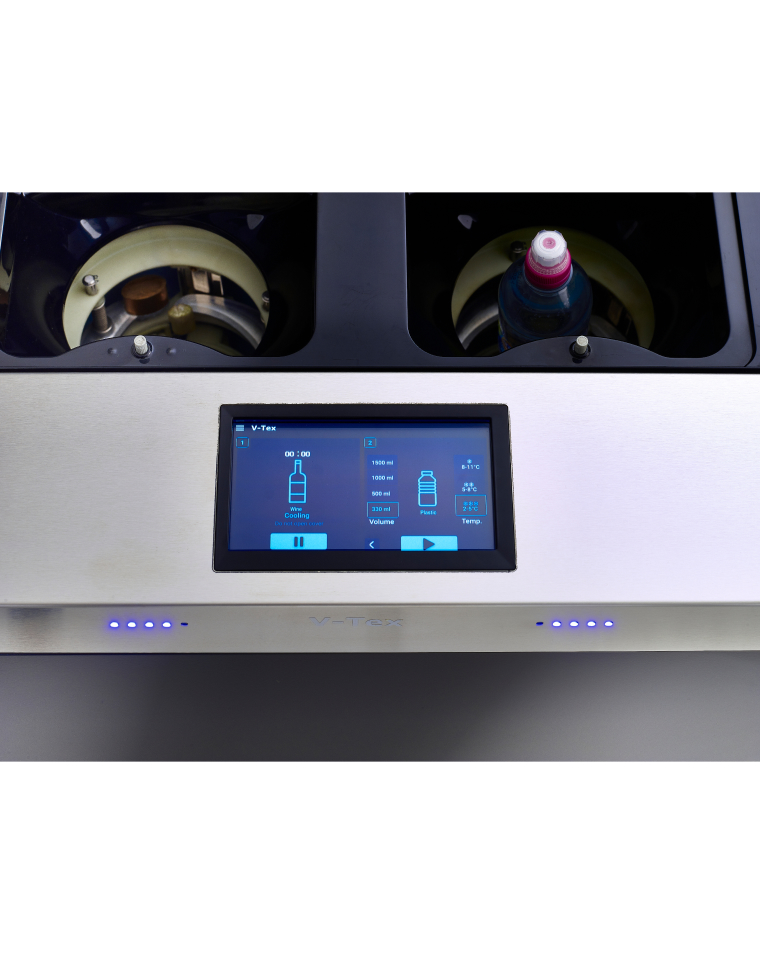

Interface Intergated, touch-based interface
Refrigeration system Bottom-mounted, removable cartridge-type refrigeration unit
Refrigerant R290 / 110g (natural refrigerant)
Drainage No plumbing required

Dimensions
